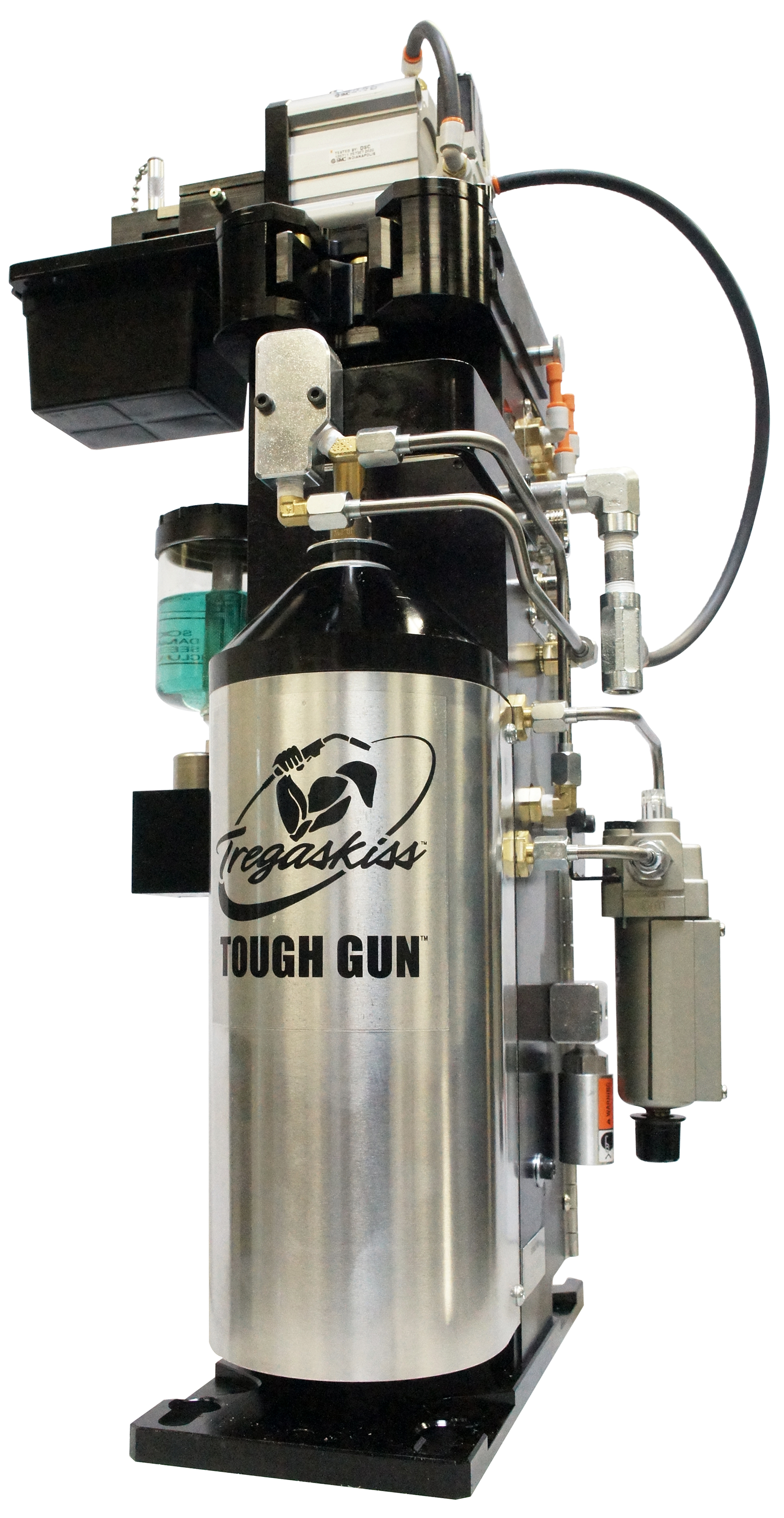

Tough Gun TT3E Reamer robotic nozzle cleaning station

The Tregaskiss Tough Gun TT3E Reamer robotic nozzle cleaning station is enhanced by digital Ethernet communications to better integrate into a company's digital controls infrastructure. The TT3E offers remote monitoring capabilities, allowing companies to oversee and troubleshoot the I/O of each reamer function and its allowable parameters through the programmable logic controllers, all in real-time and without the need to remove the unit from the weld cell. This feature, along with error diagnostic and recording capabilities, minimizes troubleshooting downtime and supports greater productivity. Featuring discrete control, the TT3E offers the flexibility to monitor and adjust all motions, along with insert recovery or fault control. In automatic mode, the reamer provides control over double-stroke, start-up dwell time and top-of-stroke dwell time. In the manual mode, there is control over the sequence and duration of each function by firing individual I/O.  A 3/4 hp lubricated air motor with gear reducer offers the high torque necessary for spatter removal, while operating at lower speeds to protect the spindle and cutter blade from excessive wear. Adding to this durability, the spindle has a rotating rod accuracy of 0.001" to 0.004" at its extended position, providing optimized, repeatable spatter removal.
