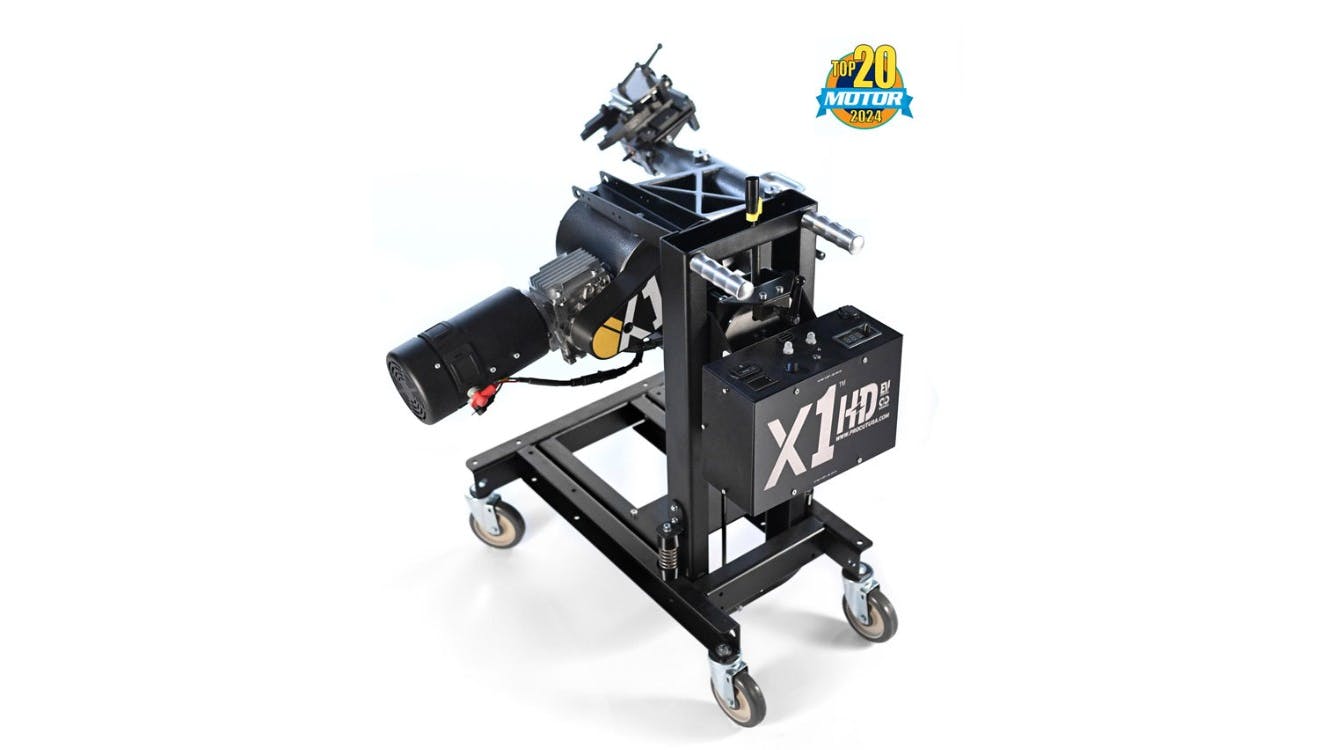

    X1 HD brake lathe

    Related To: Pro-Cut International
    Pro-Cut Brake Solutions
    679d18cf38b066c6be217959 Xd Brake Lathe

    The Pro-Cut X1 HD brake lathe has the power to machine truck, trailer, and bus air disc brakes back to operational readiness, featuring a plug-in 48v DC motor to allow a wide range of speeds when turning bus and truck axles. The EV-compatible lathe has a variable spindle speed up to 90 rpm and carriage speed of 0.005"/revolutions. An adjustable arm and 190 mm feed screw can accomodate the match machining of rotors as thick as 2" and a rotor diameter of 17.1". Max depth of cut is 0.015" per side. The wheeled 4-axis trolley has a working range of 18-30" and can be used in conjunction with low lifts and jack stands. Includes cutting tips, a maintenance tool kit, slide oil, and chip deflectors.
