    Welding Types and Positions poster

    Related To: Hobart Welders
    Weldingtypesandpositionsposter 10097881

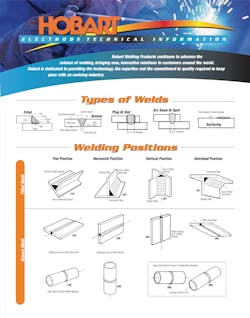

    Hobart Brothers now offers "Welding Types and Positions," the second in a series of electrode technical posters. The poster shows the five types of welds and the 12 welding positions with clear and easy-to-understand diagrams. The Types of Welds section covers fillet, plug (slot), arc seam (spot), groove and surfacing welds. The Welding Positions section covers everything from 1F through 4F in the fillet weld configuration and 1G through 6G in the groove weld configuration. This poster is also available in Spanish.
